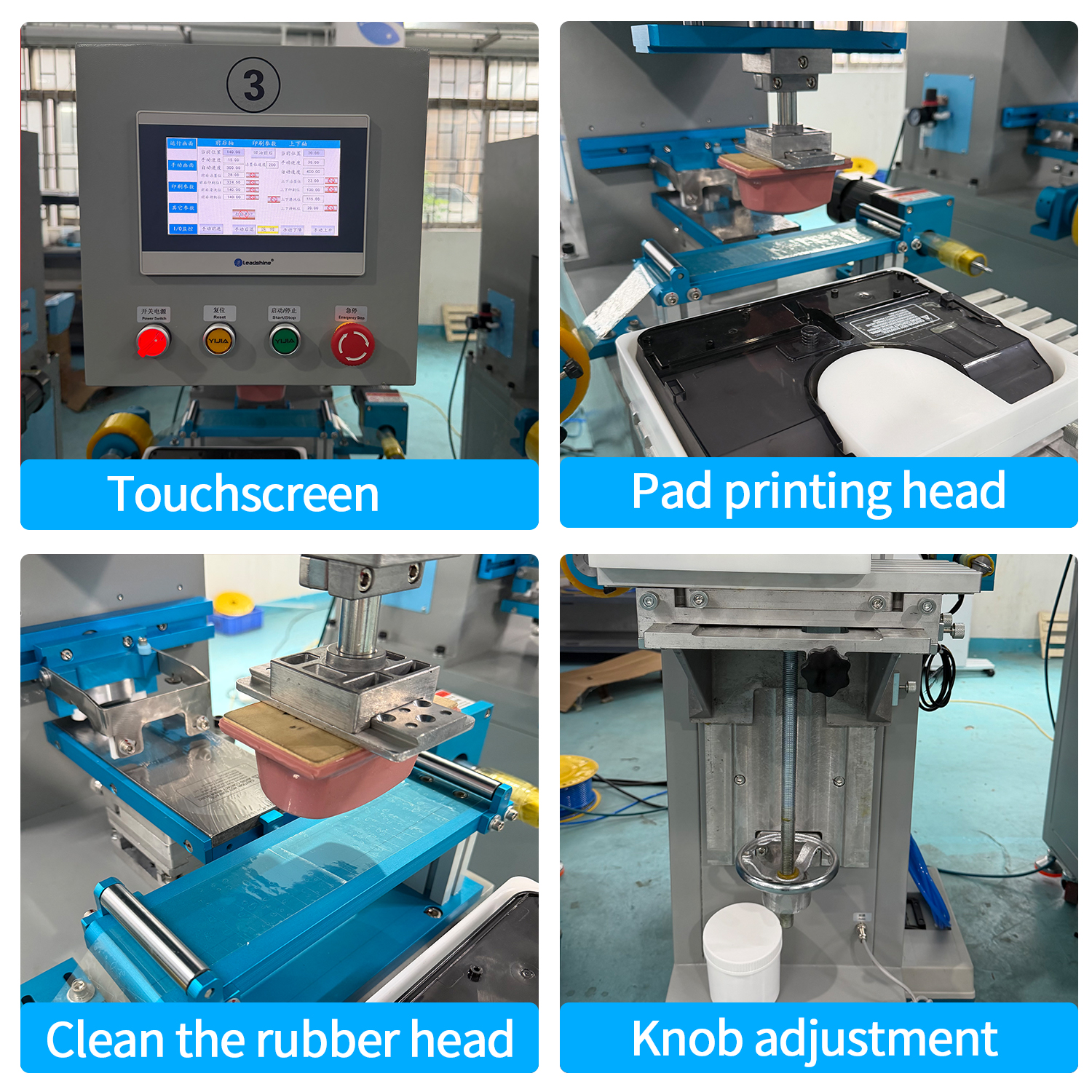

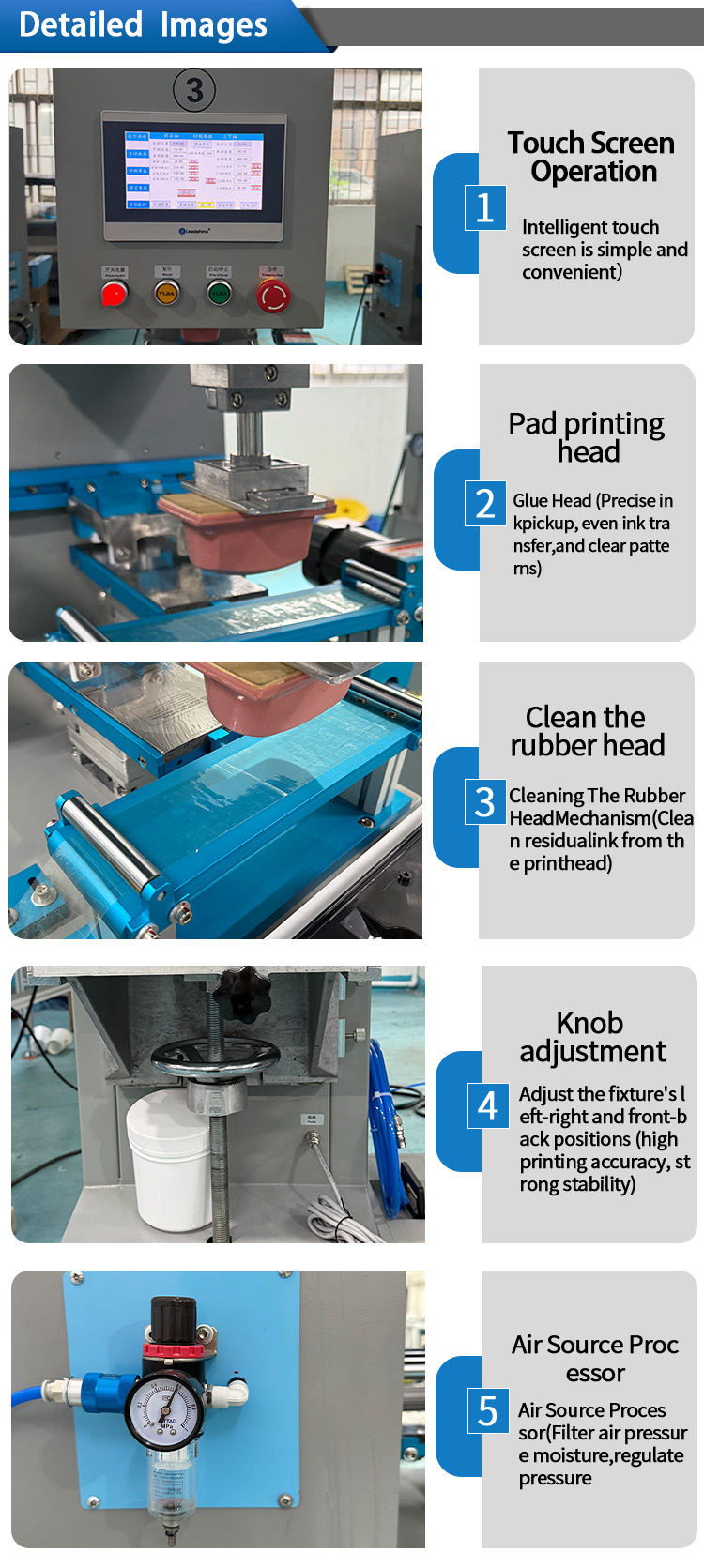

1. Precise Positioning & Clear Printing
Enables accurate ink pickup and even ink transfer for sharp, distinct printed patterns; supports fine adjustment of fixture positions (left-right, front-back) via knob control to ensure high printing accuracy and stable operation.
2. Hoge productie-efficiëntie
Integrates automated functions like the rubber head cleaning mechanism to reduce manual intervention, and is equipped with a user-friendly control system to streamline the printing process and boost output efficiency.
3. Premium & Durable Components
Assembled with high-quality parts such as professional touch screen control panels, reliable air source processors and durable pad printing heads, ensuring long-term stable and consistent performance.
4. Vivid Printing Effect
Delivers rich, vivid single-color printing results to meet diverse product branding and aesthetic needs.
5. Comprehensive After-Sales Guarantee
Offers a 12-month machine warranty and factory-direct sales service, reducing intermediate costs and providing timely technical support.
6. Easy Maintenance
The built-in rubber head cleaning mechanism effectively removes residual ink, simplifying daily maintenance and extending the service life of key components.
Machine Specifications：
| Model No.: | XZ-3-Y |
| Color : | Single color |
| Printing speed: | 1200-1500PCS/H |
| Printing area: | 70*120mm |
| Printing for Material: | Glass, stainless steel, plastic, metal, ceramic |
| Steel plate size: | 100*150mm |
| Pad stroke: | 120mm |
| Voltage : | 220V |
| Machine dimension: | 640*1030*1520mm(25.20*40.55*59.84in) |
| Weight: | 260kg |
| Transport Package: | Wooden Crate Package |
| Application: | Paper, Plastic, Cup, Tubes, Helmets, Stationery |
Production Description
