High Speed CCD Camera Positioning Machine Cylindrical Screen Printer for Mood Lipstick Lip Gloss Tube Lip Mud Tube Batch Lipstick Lip Balm and Mascara Printing

Product Model：XZ-P60-212G

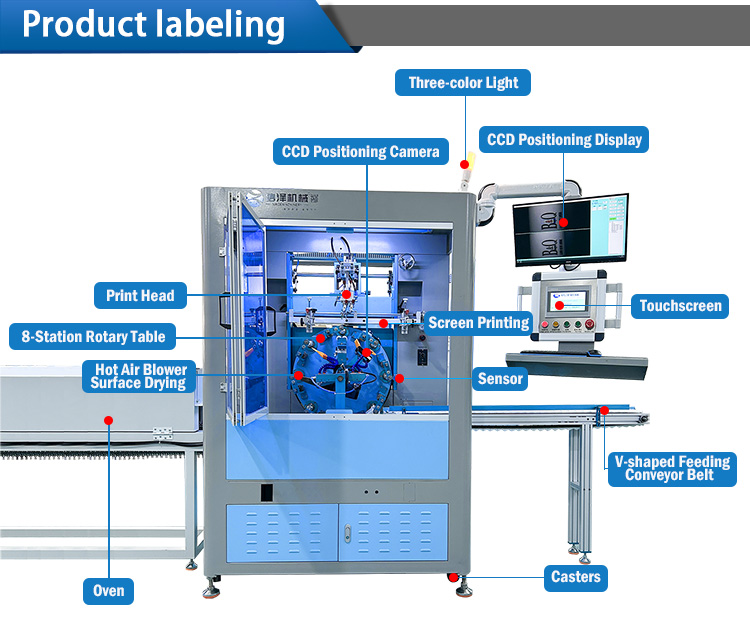

1. Touchscreen + PLC programming controls operations.

2. Fully automatic vibrating plate feeding, visual automatic mode operation

3. Pre-print electrostatic dust removal enhances product adhesion.

4. CCD camera positioning system for precise positioning.

5. Product oven curing for post-printing direct packaging.

6. Custom conveyor belt feeding, fixture-based loading, automated mode operation.

7. The whole machine has well-known brand cylinder components and a full set of servo systems.

Machine Specifications：

Product	Fully Automatic Vertical Rotary CCD Camera Cosmetic Screen Printing Machine
Model NO.	XZ-P60-212G
Maximum print area	300*600 mm
Printing Speed	3600-4500 pcs per hour (depending on the printing pattern)
Max printing diameter	φ120mm
Screen Frame Size	200*450mm
Turntable Diameter	600mm
Screen size	200*450mm
Station	8 station
Core Advantage	Positioning System CCD Camera
Machine Dimension	180015001950mm(70.8759.0676.77in)
Machine Weight	1100kg
Voltage	220V 50-60Hz
Air source pressure	0.6-0.8Mpa
Application	Lipstick, Lip Balm, Mood Lipstick, Lip Gloss Tube,Lip Mud Tube, Eyebrow Tint Tube, Makeup Remover Tube, Perfume Mini Bottle
