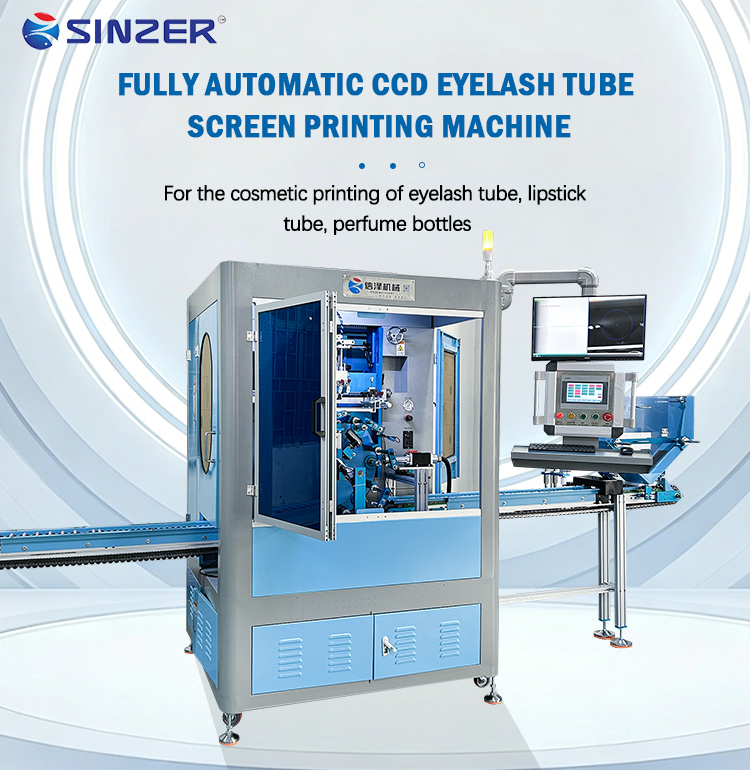

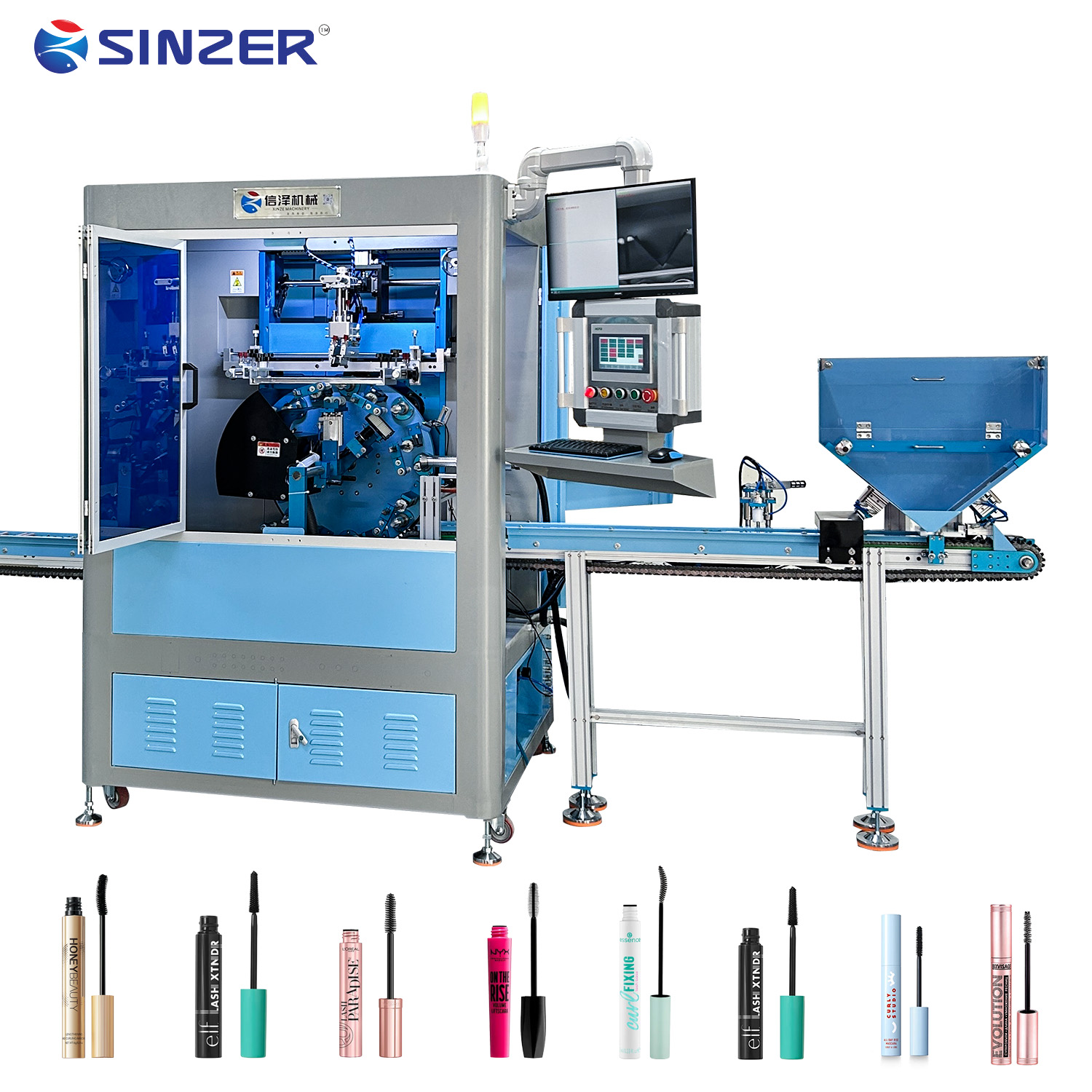

High Precision Rotary Multi Color 8 Station Screen Printing Machine with LED Drying System for Cosmetic Medical Beauty Eyelash Tubes

Productmodel：XZ-P60-212G

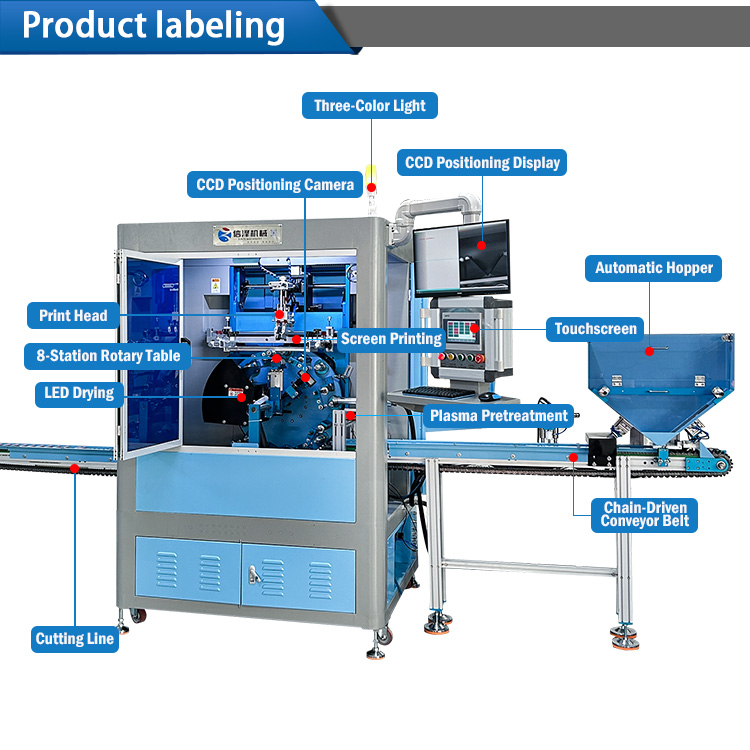

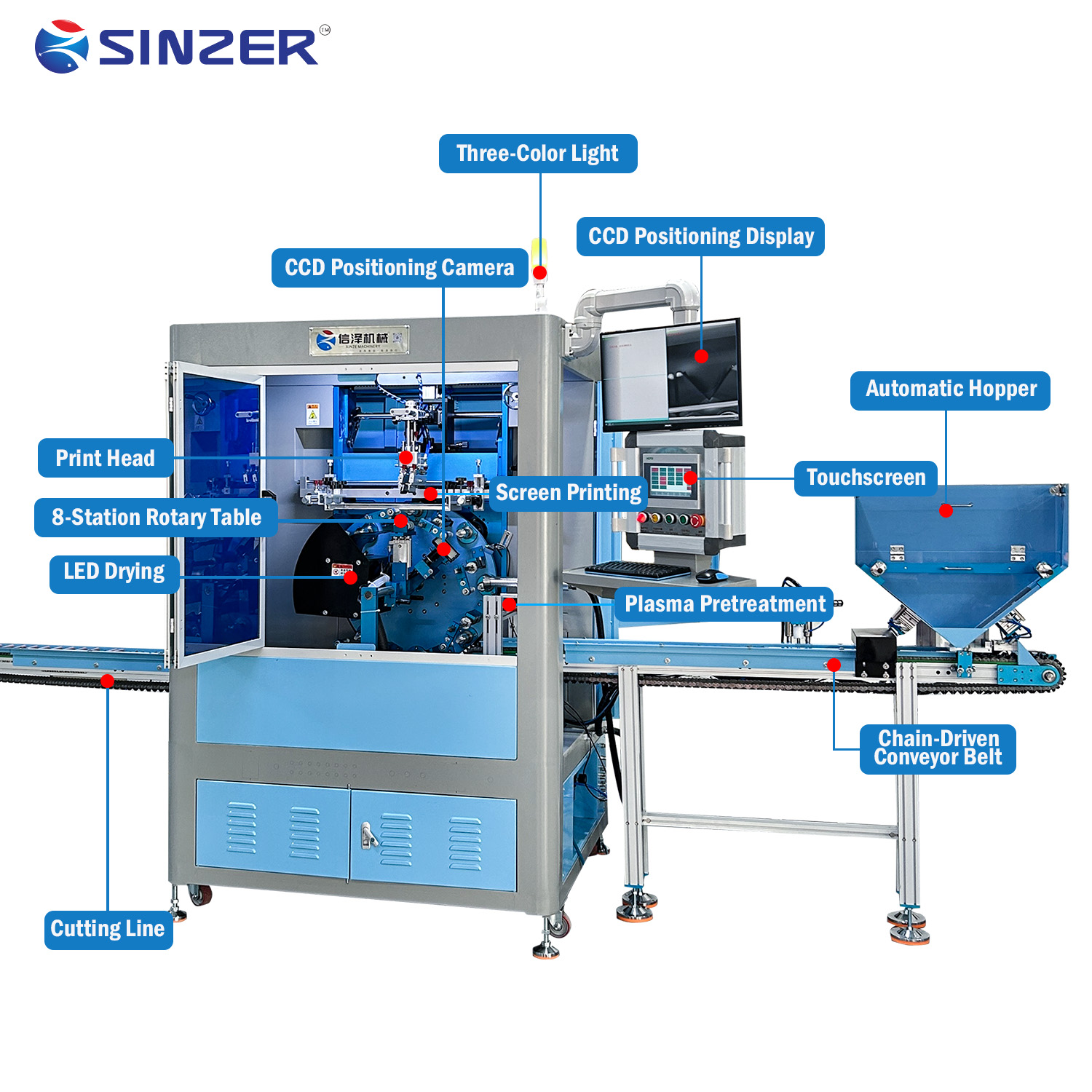

1. Touchscreen + PLC programming controls operations.

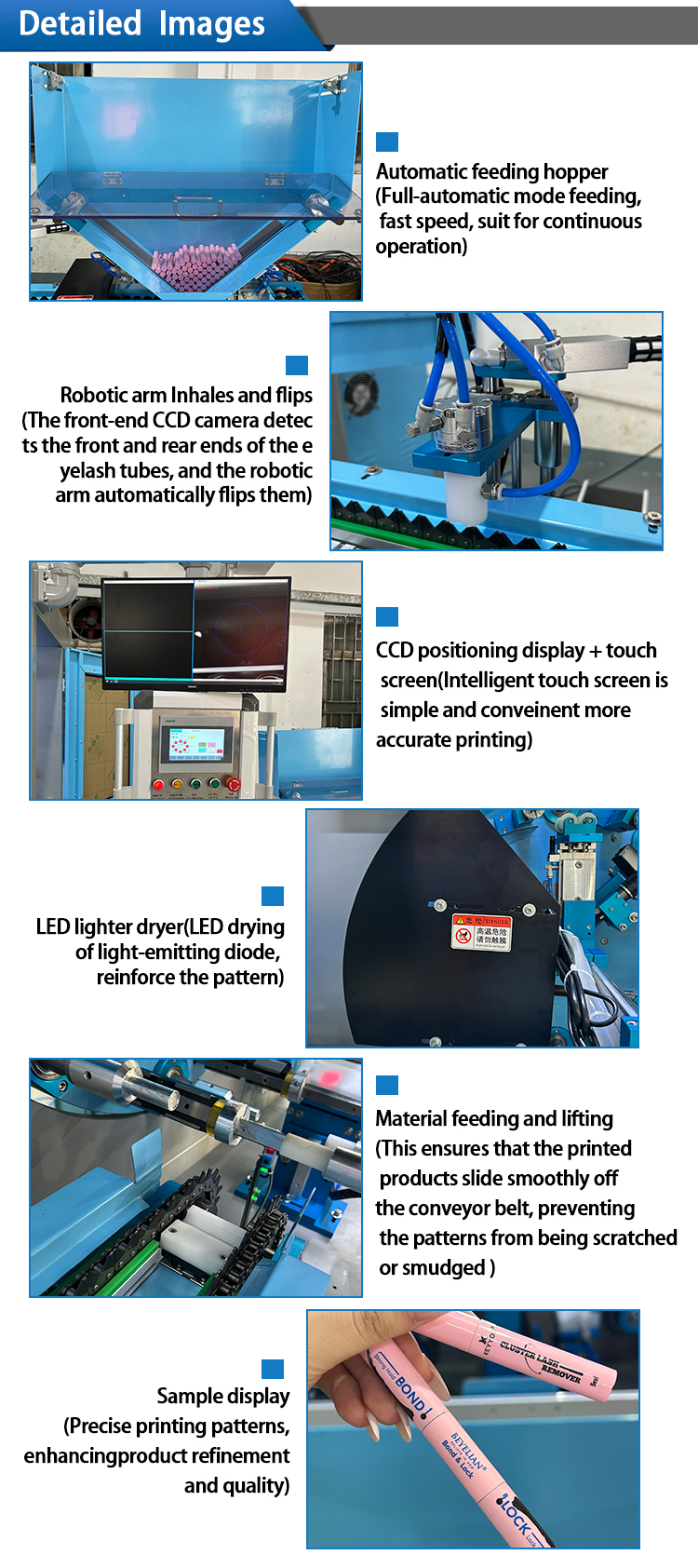

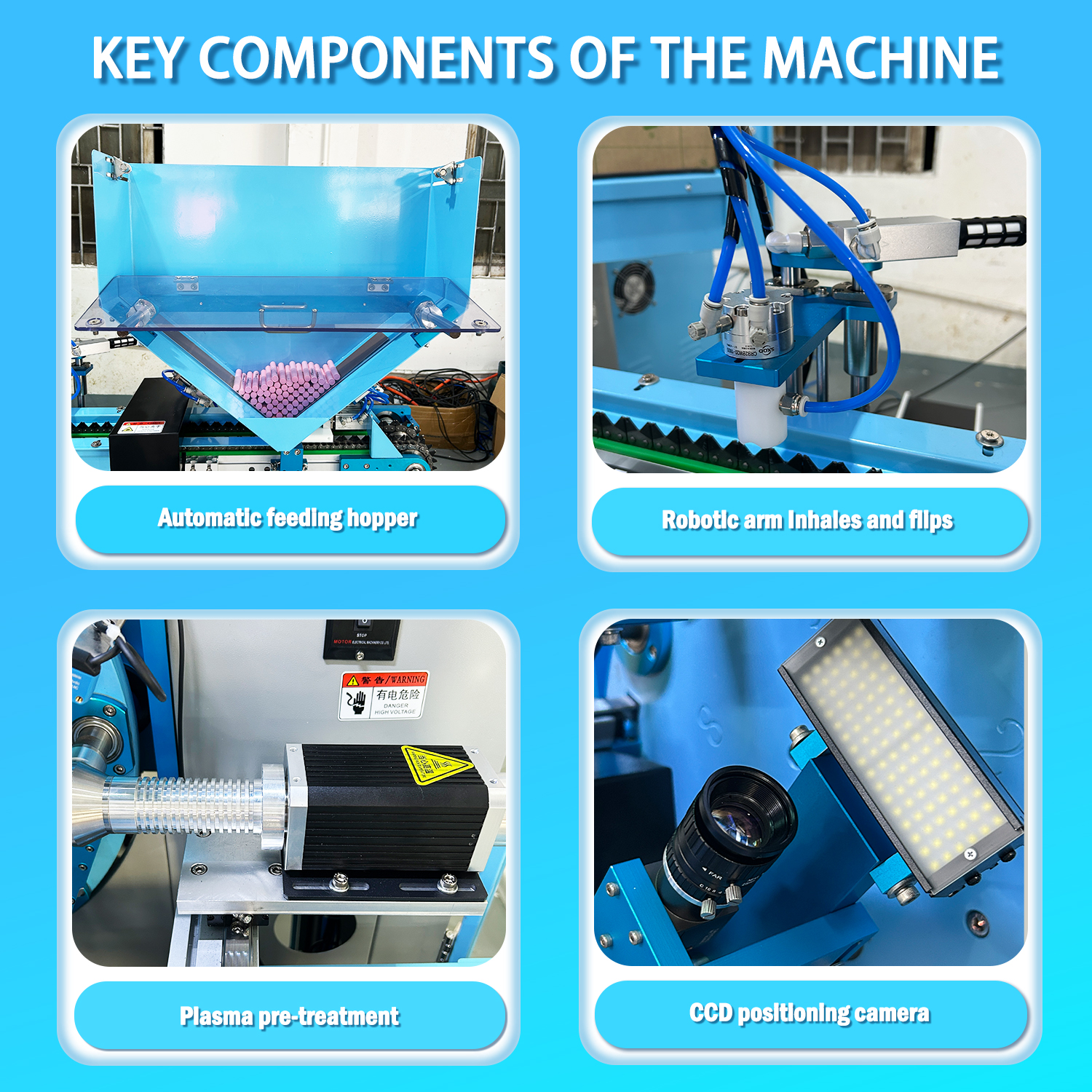

2. Fully automatic vibrating plate feeding, visual automatic mode operation

3. Pre-print electrostatic dust removal enhances product adhesion.

4. CCD camera positioning system for precise positioning.

5. Product oven curing for post-printing direct packaging.

6. Custom conveyor belt feeding, fixture-based loading, automated mode operation.

7. The whole machine has well-known brand cylinder components and a full set of servo systems.

Machinespecificaties：

Product	Fully Automatic CCD Camera Cosmetic Screen Printing Machine
Model NO.	XZ-P60-212G
Maximum print area	300*600 mm
Afdruksnelheid	3600-4500 pcs per hour (depending on the printing pattern)
Maximale afdrukdiameter	φ120mm
Screen Frame Size	200*450mm
Turntable Diameter	600mm
Screen size	200*450mm
Station	8 station
Core Advantage	Positioning System CCD Camera
Machineafmeting	180015001950mm(70.8759.0676.77in)
Machinegewicht	1100kg
Voltage	220V 50-60Hz
Air source pressure	0.6-0.8Mpa

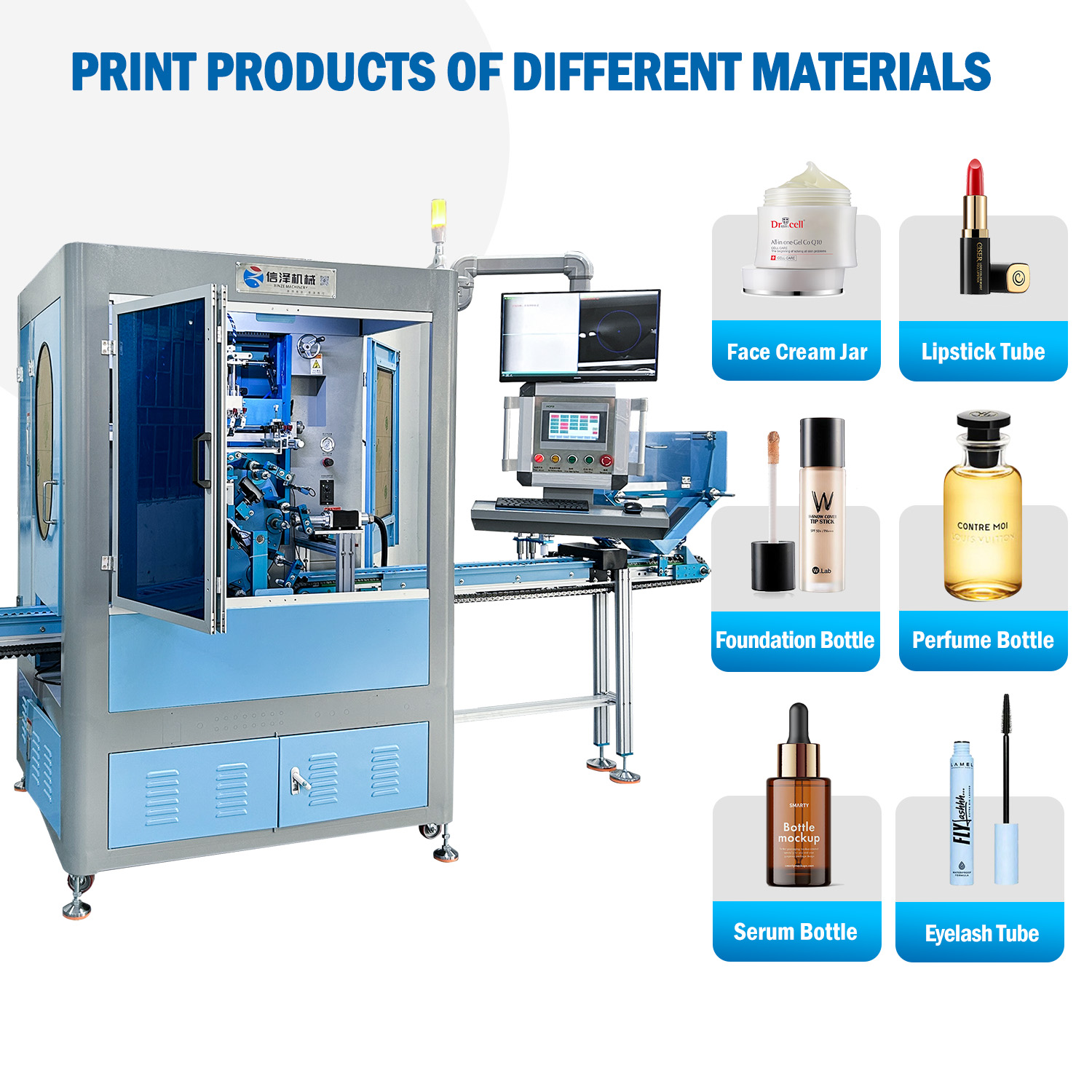

Sollicitatie	eyelash tube, lipstick, lipstick tube, eyebrow tint tube, perfume bottle, face cream container, foundation bottle, serum bottle
